FEATURES AND BENEFITS

FRAME PROTECTION
Economy models are all equipped with a steel frame for added protection and durability

OIL ALERT®
This feature protects the engine by shutting it down if the oil pressure gets too lower

CIRCUIT PROTECTION
All circuits on the Honda Economy Series generators are protected from overload

120/240 VOLT SWITCH
Switch between 120 or 240 volts. 120 volt mode allows full power to be available

LARGE FUEL TANK
Experience longer run times with a fuel tank thats 3 times larger than previous models

Honda’s Economy Series generators are a reliable source of “no frills” power. These models are all equipped with Oil Alert® and a protective steel frame. Honda’s EG Series is a lineup that delivers the best of both worlds, reliability and cost savings.

The Honda EG2800i brings stable inverter power but with an open frame design, making this a light and economic DIY power source that provides fuel-efficiency with long run times of up to 12.1 hours at 1/4 load. With its built-in 30A receptacle, it can also easily connection to a transfer switch for reliable home backup power.

The EG4000, EG5000, and EG6500 features include 120V GFCI duplex receptacles, a convenient fuel gauge, and centralized controls for ease of use. They also come standard with a Honda Digital Auto Voltage Regulator (DAVR) that maintains voltage stability with a +/- 1% of 60hZ, thus protecting and optimizing the equipment being powered.

Features

The EG4000 uses Honda’s exclusive DAVR (Digital Automatic Voltage Regulator). The DAVR is designed to hold the voltage stability within a +/- 1 percent range during operation. This provides more consistent power.
CO-MINDER continuously monitors carbon monoxide (CO) levels. It automatically shuts down the generator before detected CO levels near the generator become dangerously high.
Legendary Honda commercial-grade OHV engines are reliable, easy-to-start and incredibly rugged.
Choose between using both 120 and 240 Volts, or 120 Volts only. This allows for the total generator output to be available through any of the 120 volt outlets, limited only by the capacity of the individual outlet. This enables you to power units with larger wattage requirements.
Runs 14.8 hours at 50 percent load (6.3 gal.) keeps you working, all day long.
Protects the generator by shutting the engine off when low oil is detected.

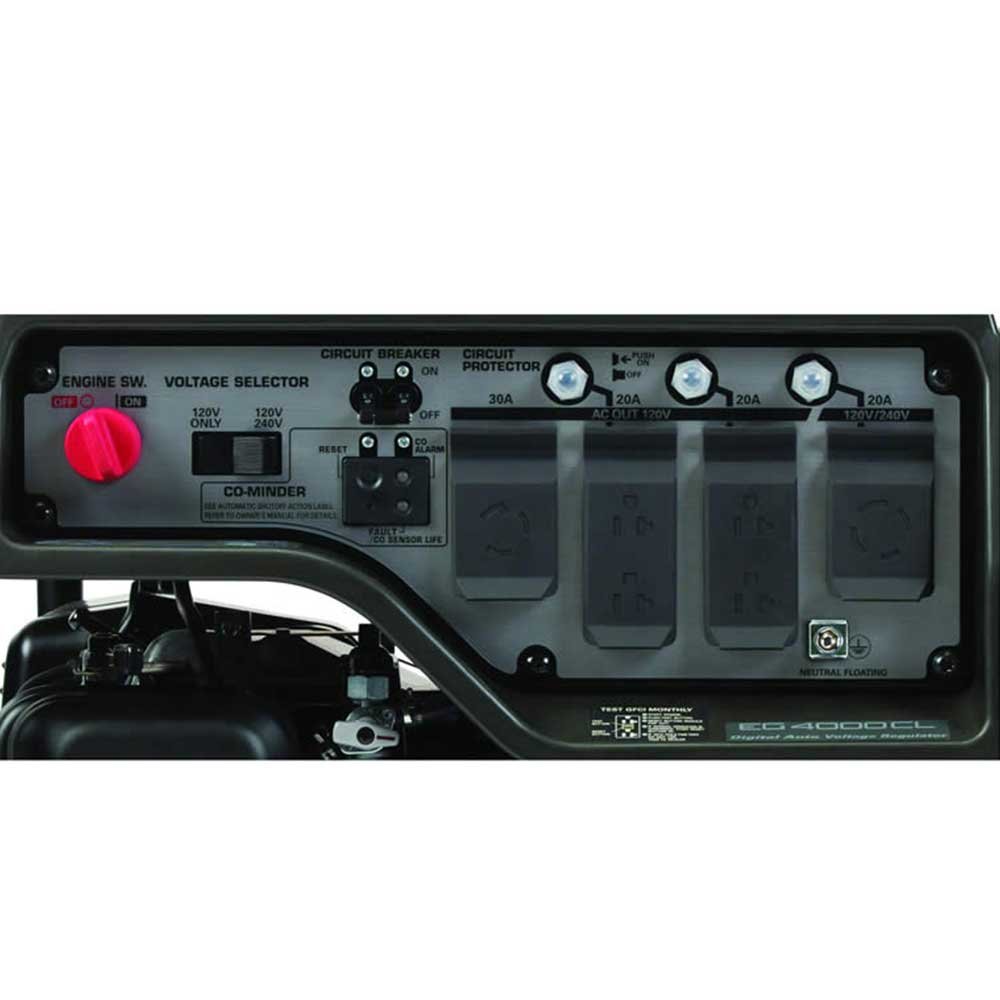

The EG4000 offers 2 duplex outlets with GFCI protection.
Economic, portable power
Long run time – up to 14.8 hours
CO-MINDER: advanced carbon monoxide detection system

What’s in The Box

270cc 4000W 120/240V Ergonomic Gasoline Generator w/ CO-MINDER
Owner’s Manual

Warranty

3-Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

SKU	EG4000CLAN
Brand	Honda
Engine	Honda GX270
Displacement	270cc
AC Output	120/240V 4000W max. (33.3/16.7A) / 3500W rated (29.2/14.6A)
Receptables	20A 125V GFCI Duplex (2), 30A 125V Locking Plug, 20A 125/250V Locking Plug
Starting System	Recoil Only
Fuel Tank Capacity	6.3 Gallons
Run Time per Tankful	10.1 hr at rated load, 14.8 hr at 1/2 load
Noise Level	67 dB(A) at rated load 66 dB(A) at 50 percent load
Dimensions (L x W x H)	26.8 x 20.9 x 22.5 in
Weight	156 lb
